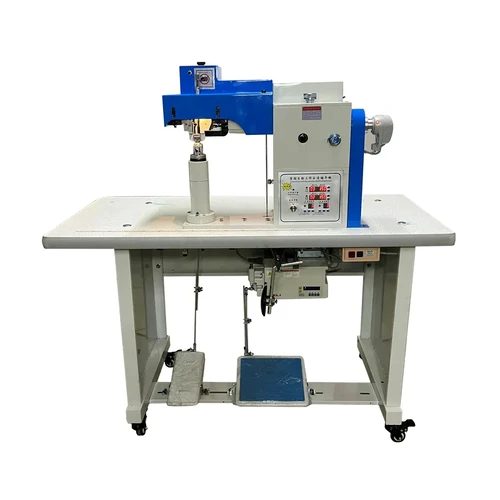

Automatic Seam Rubbing Shoe Folding Machine JN-908

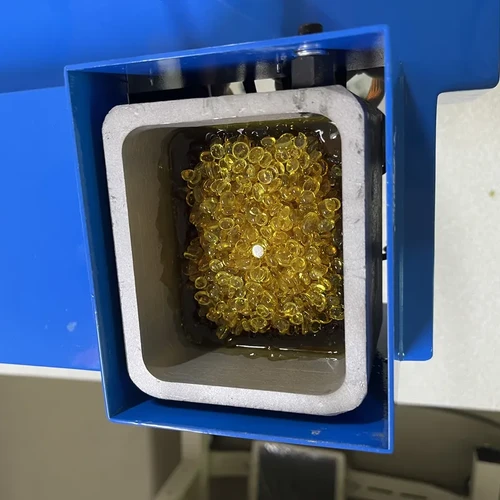

1. This machine uses environmentall friendly hot melt glue, and the automatic gluing hammering has good quality, high efficiency and labor saving.

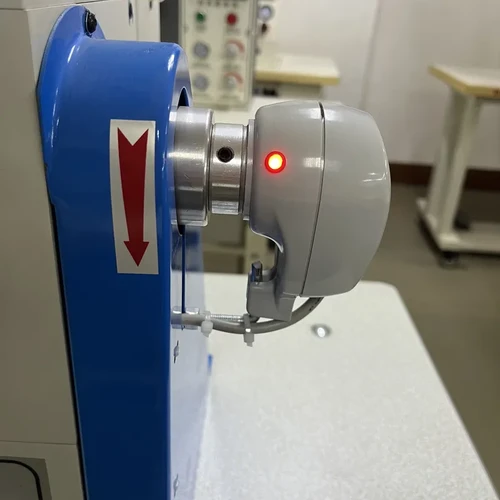

2. It is driven by Taiwan HELI electronic motor, with adjustable speed, energy saving and low failure.

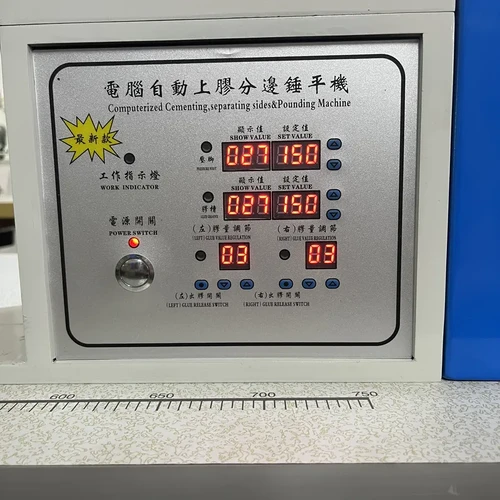

3. Digital electronic control system, which can adjust the temperature of the glue tank and the amount of glue output, is easy to adjust.
4. Newedge separation device, which can adjust the thckness.

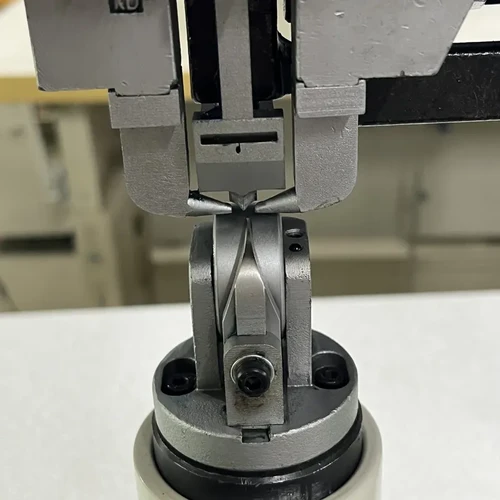

5. The glue pressure footcan be adjusted left and right, upand down, and it isconvenient for employees to adjust and operate.
6. This machine is suitable for the edge separation hammering process of leather such as shoes, bags, handbags, etc.

Specification of Automatic Seam Rubbing Shoe Folding Machine JN-908

Voltage220V
Power650W
Speed (s.p.m)2000
Lift of the foot presser10MM
Width of Edge Folding0-8mm
Net weight90KG
Dimension120*60*140CM
