Industrial Shoe Sewing Machine with 360° Rotating Arm JN-566 (Programmable Post Bed Type)

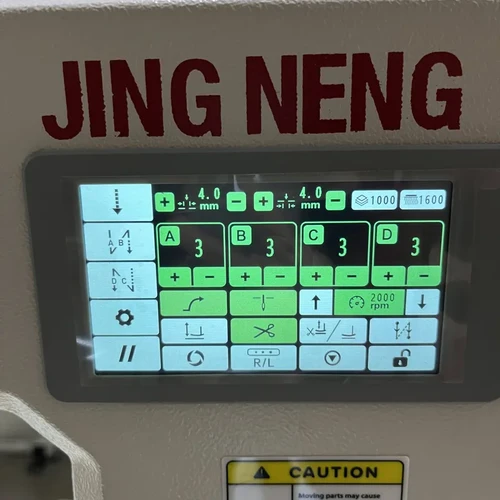

1. This machine is equipped with a smart touch screen display, which makes the operation more intuitive and simple. All functions can be completed on the screen, which is convenient and fast. The stitch length and speed can be adjusted freely.

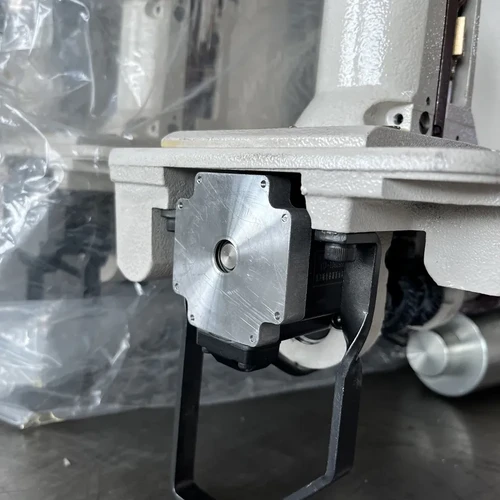

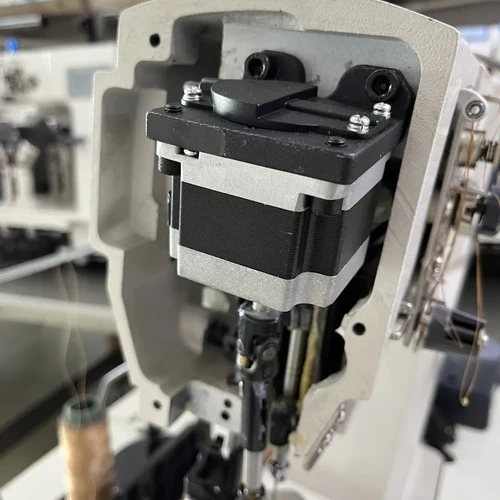

2. The upper and lower feeding mechanisms are driven by a direct drive motor, which reduces the traditional mechanical structure, has a lower failure rate, is more stable and convenient, and saves the trouble of replacing the bearings later. The line is more beautiful, the backstitching overlaps perfectly, and the speed of the upper and lower feeding motors can be independently adjustable. It can be completely overlapped when sewing double-layer materials.

3. This machine adopts a 360-degree horizontal rotating support arm design, with an arm length of 230mm. It can sewing any direction. lt is suitable for sewing at special angles, such as short boots, snow boots, injection molded products, various leather products, etc., to achieve more perfect results.

4. Can be programmed in multiple stages and pattern sewing, the machine head is stable, the operation vibrations are small, and the step less peed change makes it easier for employees to control, and novices can work without training.

5. Automatic needle backing, presser foot lifting, automatic positioning, automatic tilt and power-off settings make the machine more intelligent


Specification of Industrial Shoe Sewing Machine with 360° Rotating Arm JN-566 (Programmable Post Bed Type)

Voltage220V
Power750W
Speed (s.p.m)2500
Lift of the foot presser12MM
Stitch Length0-6MM
Needle Stroke40MM
NeedleDP*5
Automatic presser foot liftingYes
Automatic under trimmingNo
Automatic back trackingYes
Net weight98KG
Dimension120*60*125CM
