Industrial Shoe & Leather Sewing Machine with Rotating Arm JN-568 (Programmable Post Bed Type)

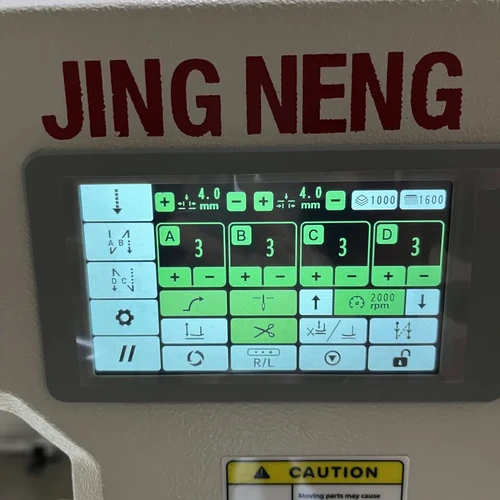

1. This machine is equipped with a smart touch screen display, which makes the operation more intuitive and simple. All functions can be completed on the screen, which is convenient and fast. The stitch length and speed can be adjusted freely.

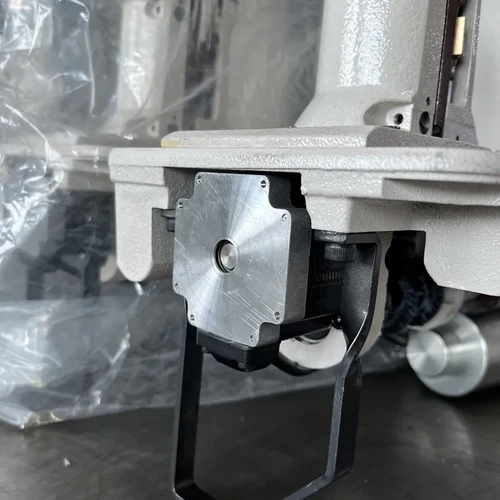

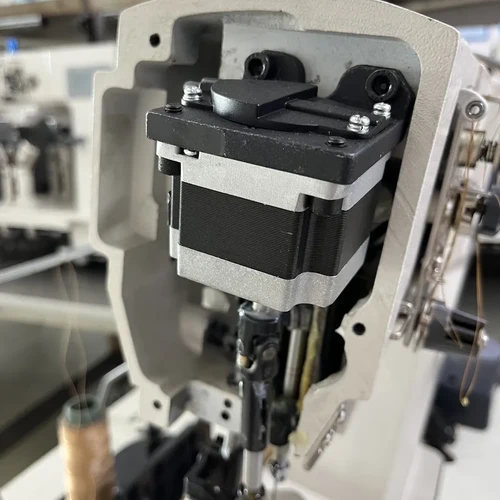

2. The upper and lower feeding mechanism is drivenby a direct drive motor, which reduces the traditional mechanical structure, has a lower failure rate,ismorestable and convenient, and saves the trouble of replacing thebearings later. The line is more beautiful, the back stitching overlaps perfectly, and the speed of the upper and sorer double-layer materials.

3. This machine adopts a360-degreehorizontal rotating support arm design, arm length of 230mm, high 330mm. It can sew in any direction.It is suitable for sewing at special angles, such as long-riding boots, snow boots, luggage and handbags, injection-molded products, leather products, etc., to achieve more perfect results.

4. Canbe programmed in multiple stages and pattern sewing, the machine head is stable,theoperation vibration is small, and the stepless speed change makes it easier for employees to control, and novices can work without training.

5. Automatic needle backing, presser foot lifting, automatic positioning, automatic tilt and power-off settings make the machine more intelligent.


Specification of JN-568 Extended Mid-Height 60 Degree Rotating Stepper Motort Computer Sewing Machine

Voltage220V
Power750W
Speed (s.p.m)2500
Lift of the foot presser12MM
Stitch Length0-6MM
Needle Stroke40MM
NeedleDP*5
Automatic presser foot liftingYes
Automatic under trimmingYes
Automatic back trackingYes
Net weight123KG
Dimension120*55*170CM


Products
Get A QUOTE right now

Ask JINGNENG Shoe Making Equipment Expert!

Popular Stepper 360 Degree Single Computer Sewing Machine

Industrial High Post Shoe Sewing Machine JN-567 (Programmable Type 360° Rotating) Industrial High Post Shoe Sewing Machine JN-567 (Programmable Type 360° Rotating)
Lengthen And Heighten 360 Degree Rotating Stepper Motort Computer Sewing Machine JN-569 Lengthen And Heighten 360 Degree Rotating Stepper Motort Computer Sewing Machine JN-569

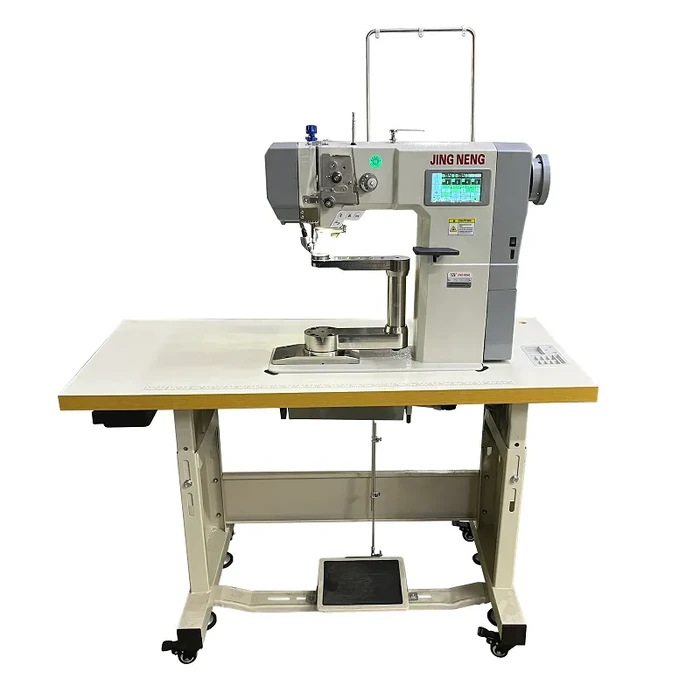

Short Arm Medium Height 360 Degree Rotating Stepper Motort Computer Sewing Machine JN-563 Short Arm Medium Height 360 Degree Rotating Stepper Motort Computer Sewing Machine JN-563
