Industrial High Post Shoe Sewing Machine JN-567 (Programmable Type 360° Rotating)

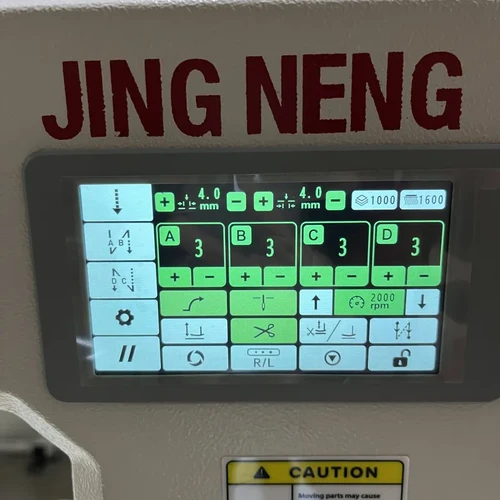

1. This machine is equipped with a smart touch screen display, which makes the operation more intuitive and simple. All functions can be completed on the screen, which is convenient and fast. The stitch length and speed can be adjusted freely.

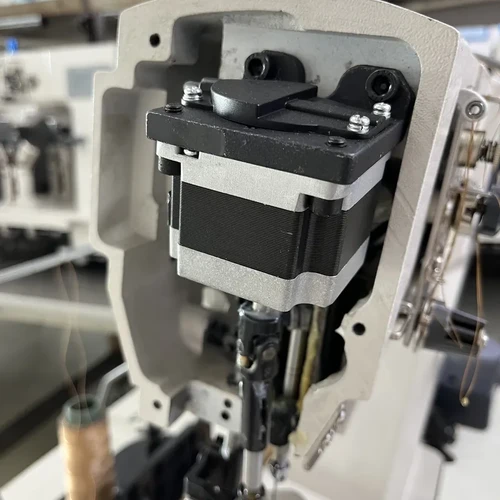

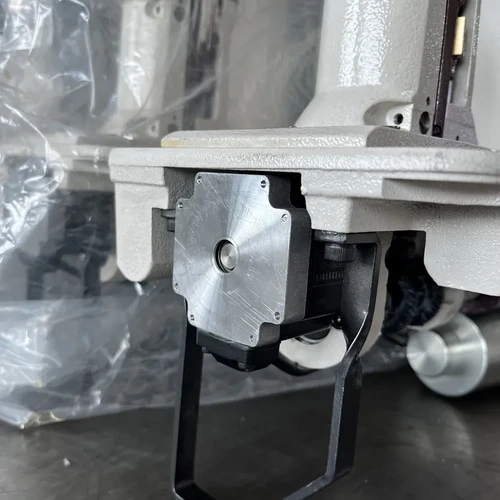

2. The upper and lower feeding mechanism is driven by a direct drive motor, which reduces the traditional mechanical structure, has alower failure rate,ismore stable and convenient, and saves the trouble of replacing the bearings later. The line is more beautiful, the back stitching overlaps perfectly, and the speed of the upper and sorer double-layer materials.

3. This machine adopts a 360-degree horizontal rotating support arm design, with an arm length of 230mm high 330mm. It can sew in any direction. It is suitable for sewing at special angles, such as long riding boots, snow boots, injection molded products, various leather products, etc., to achieve more perfect results.

4. Can be programmed inmultiple stages and pattern sewing, the machinehead is stable, the operation vibration is small, and the stepless speed change makes it easier for employees to control, and novices can work without training.

5. Automatic needle backing, presser foot lifting, automatic positioning, automatic tilt, and power-off settings make the machine more intelligent.


Specification of Industrial High Post Shoe Sewing Machine JN-567 (Programmable Type 360° Rotating)

Voltage220V
Power750W
Speed (s.p.m)2500
Lift of the foot presser12MM
Stitch Length0-6MM
Needle Stroke40MM
NeedleDP*5
Automatic presser foot liftingYes
Automatic under trimmingNo
Automatic back trackingYes
Net weight113KG
Dimension120*55*170CM
