Extended Height Stepper Motor Sewing Machine JN-565

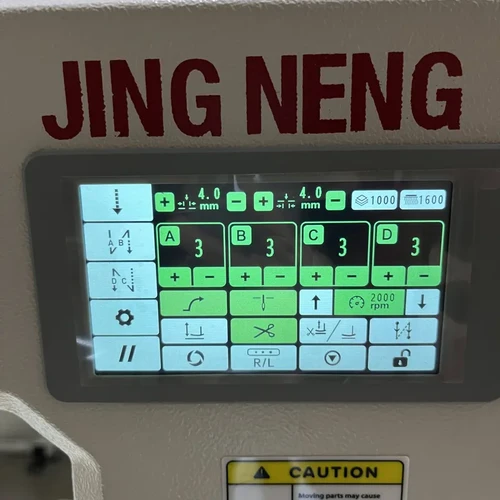

1. This machine adopts a large-sized touch screen, which makes the operation more intuitive and simple. All functions can be completed with one click and the stitch length and speed can be adjusted freely.

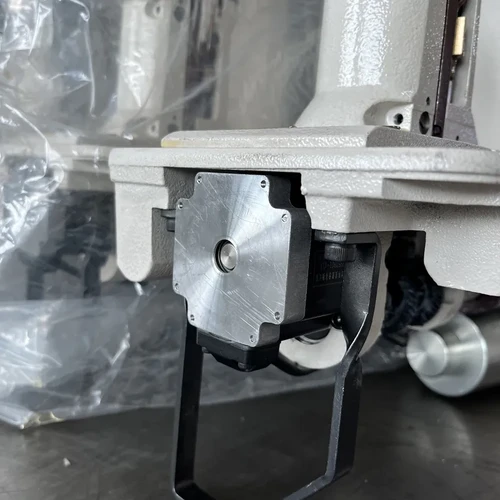

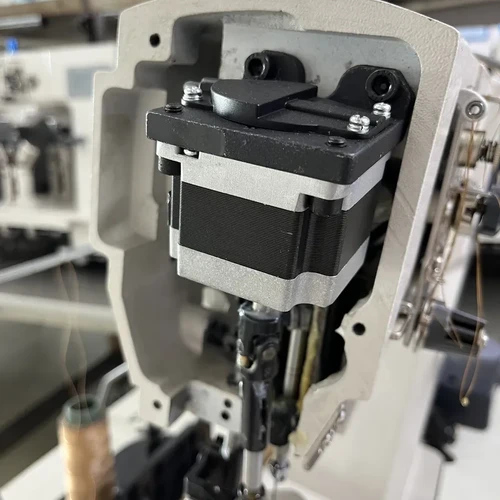

2. It uses a direct-drive stepper motor to feed, reducing the traditional mechanical structure, with a lower failure rate,morestableand convenient, and stitch distance only needstobe adjusted on the display screen.

3. The line is more beautiful, the back stitch perfectly overlaps, the outer bend, the inner bend, the stitch length is exactly the same, and the upper and lower feeding speeds can be adjusted separately to allow the material to completely overlap.

4.lt is capable of multi-stage programming and pattern sewing, the machine head is stable,theoperation vibration is small, and within the specified speed range, the speed can be automatically adjusted is easier for employees to control, and novices can work without training.

5. Automaticback stitching, automatic presser foot lifting,automaticthread trimming, automatic positioning, automatic tilting, and power-off settings make the machine more intelligent.

6. Built in multiple languages,suchasChinese, Vietnamese, etc., equipped with dual-color lights and automatic brightness adjustment.


Specification of Extended Height Stepper Motor Sewing Machine JN-565

Voltage220V
Power750W
Speed (s.p.m)2500
Lift of the foot presser12MM
Stitch Length0-6MM
Needle Stroke40MM
NeedleDP*5
Automatic presser foot liftingYes
Automatic under trimmingYes
Automatic back trackingYes
Net weight113KG
Dimension120*55*170CM
