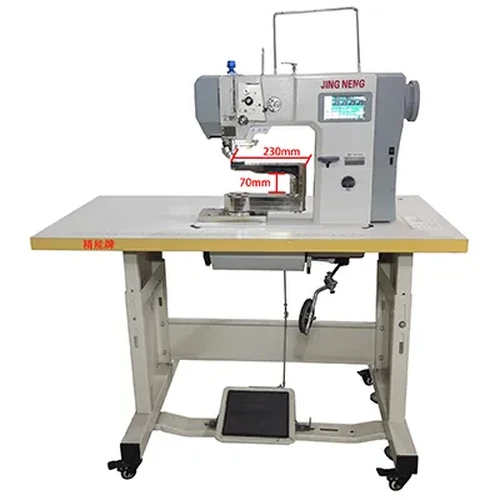

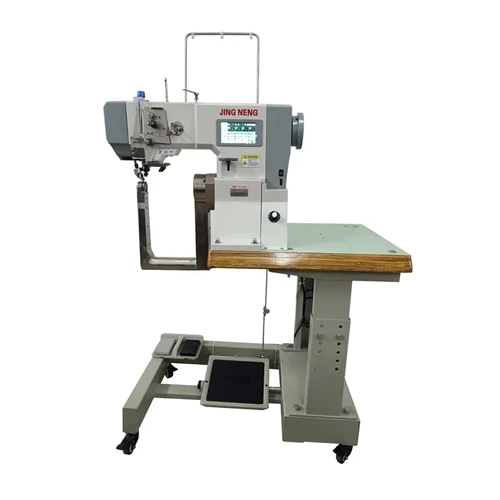

Post Bed Computerized Sewing Machines for Shoes JN-598

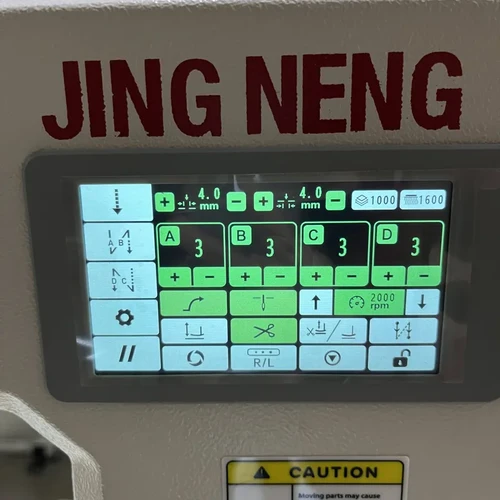

1. This machine is equipped with a smart touch screen display, which makes the operation more intuitive and simple. All functions can be completed on the screen, which is convenient and fast. The stitch length and speed can be adjusted freely.

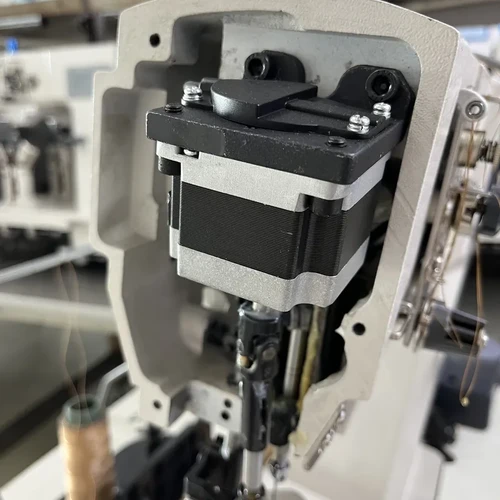

2. The upper and lower feeding mechanisms are driven by a direct drive motor; the traditional mechanical structure has a lower failure rate, is more stable and convenient, and saves the trouble of replacing the bearings later. The line is more beautiful, the back stitching overlaps perfectly, and the speed of the upper and lower feeding motors can be independently adjustable; it can be completely overlapped when sewing double-layer materials.

3. This machine adopts a 180-degree U-shaped automatic front and rear swing arm design, and adds an independent control swing arm motor, which can swing forward and backward for sewing. It is suitable for sewing bags, handbags, and various leather products at special angles to achieve more perfect results.

4. Can be programmed in multiple stages and pattern sewing, the machine head is stable, the operation vibration is small, and the stepless speed change makes it easier for employees, and novices can work without training.

5. Automatic needlebacking, presser foot lifting, automatic positioning, automatic tilt, and settings make the machine more intelligent.


Specification of Post Bed Computerized Sewing Machines for Shoes JN-598

Voltage220V
Power650W
Speed(S.P.M)1200
Lift Of The Foot Presser13MM
Stich Length0-13MM
Needle Stroke34MM
NeedleDD*1
Automatic Foot Presser Lifting(No)
Automatic Under Trimming(No)
Automatic Back Tracking(No)
Net Weight85KG
Dimension120*54*147
