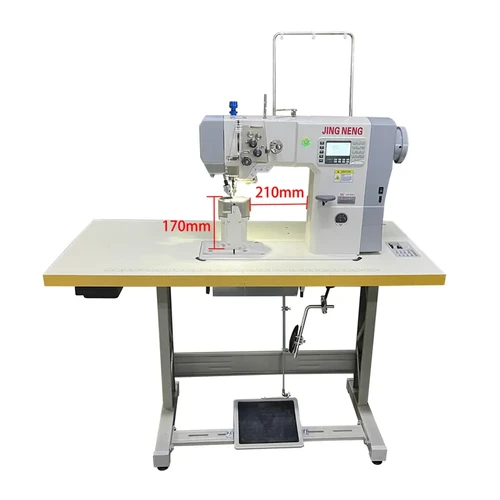

Double Needle Post Bed Sewing Machine JN5-2/JN6-2 for Shoes | Button Type Stepper Feed

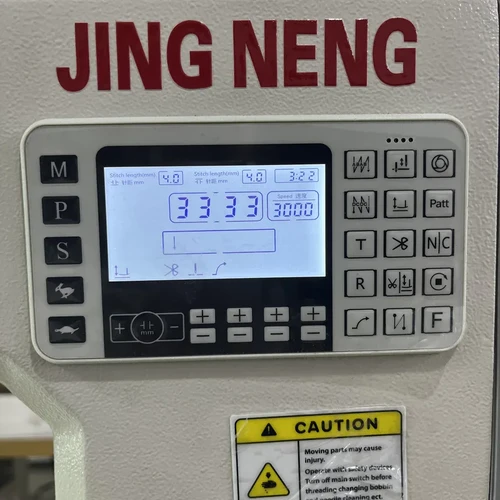

1. This machine uses a button display screen, all functions can be completed with one click, which is convenient and fast, and the stitch length and speed can be adjusted freely.

2. It uses a direct-drive stepper motor to feed, reducing the traditional mechanical structure, with a lower failure rate, more stable and convenient, and stitch distance only needs to be adjusted on the display screen.

3. The line is more beautiful, the backstitch perfectly overlaps, the outer bend, the inner bend, the stitch length is exactly the same, and the upper and lower feeding speeds can be adjusted separately to allow the material to completely overlap.

4. It can be multi-stage programmed and pattern sewn, the machine head is stable, the operation vibration is small, the speed is infinitely variable, and the employees are easier to operate, and novices can take up their posts without training.

5. Automatic backstitch, automatic thread trimming, automatic positioning, automatic tilt power-off settings make the machine more intelligent.

6. Built-in multiple languages, such as Chinese, Vietnamese, etc., equipped with dual-color lights and automatic brightness adjustment.


Specification of Double Needle Post Bed Sewing Machine JN5-2/JN6-2 for Shoes | Button Type Stepper Feed

ModelJN5-2
Voltage220V
Power750W
Speed (s.p.m)2500
Lift of the foot presser12MM
Stitch Length0-6MM
Needle Stroke40MM
NeedleDP*5
Automatic presser foot liftingNo
Automatic under trimmingYes
Automatic back trackingYes
Net weight100KG
Dimension120*55*130CM

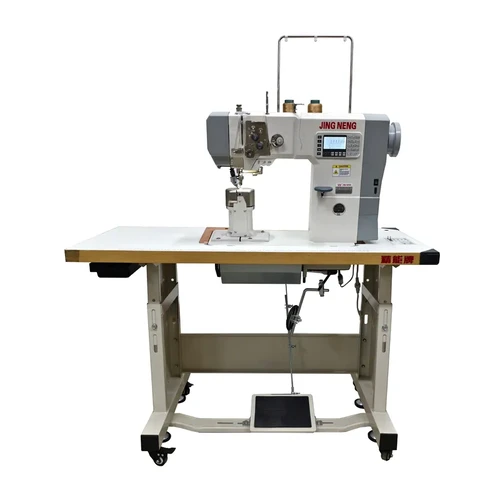

ModelJN6-2
Voltage220V
Power750W
Speed (s.p.m)2500
Lift of the foot presser12MM
Stitch Length0-6MM
Needle Stroke40MM
NeedleDP*5
Automatic presser foot liftingNo
Automatic under trimmingYes
Automatic back trackingYes
Net weight100KG
Dimension120*55*130CM
