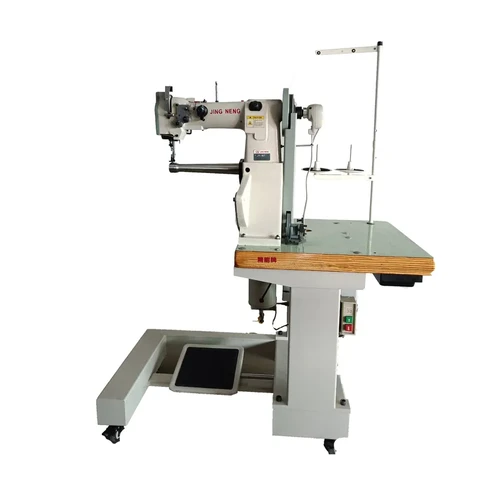

Cylinder Bed Small Mouth Shoe Sole Stitching Machine JN-167

1. This machine adopts the "Compound feeding" method, which ensures reliable sewing, uniform stitch length and beautiful stitches.

2. Oil-immersed lubrication system protects horns from being easily replaced under normal use;

3. Separate transmission structure, when the sewing thread is jammed, the power will be automatically cut off and operation stopped to protect the machine from damage.

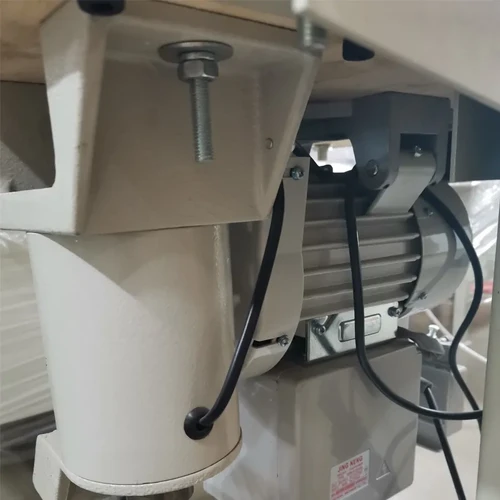

4. The electronic positioning motor can automatically position and lift the presser foot, and the sewing speed can be adjusted as needed.

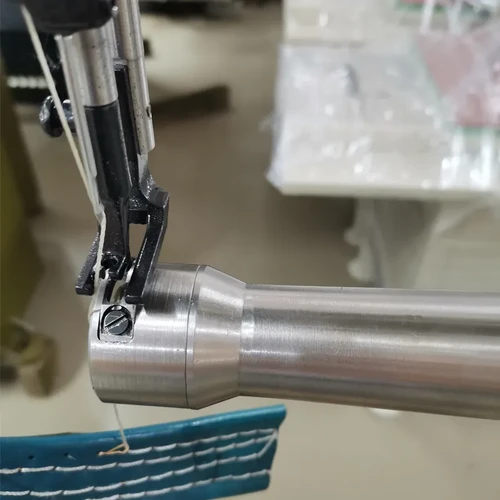

5. Special smallmouth horizontal tube design, diameter 37mm, suitable for sewing sports shoes, casual shoes, toys, sports protective gear and special parts of various products.

Specification of Cylinder Bed Small Mouth Shoe Sole Stitching Machine JN-167

Voltage220V
Power1000W
Speed (s.p.m)800
Lift of the foot presser14MM
Stitch Length0-12MM
Needle Stroke38MM
NeedleCP*5
Automatic presser foot liftingYes
Automatic under trimmingNo
Automatic back trackingNo
Net weight108KG
Dimension110*56*130CM
