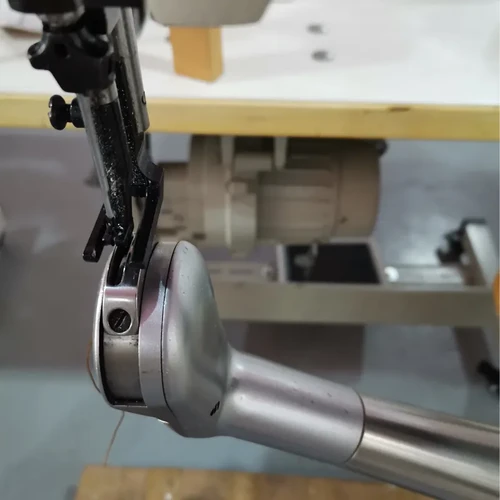

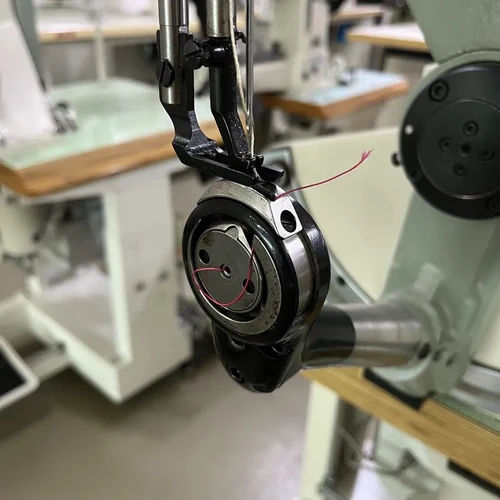

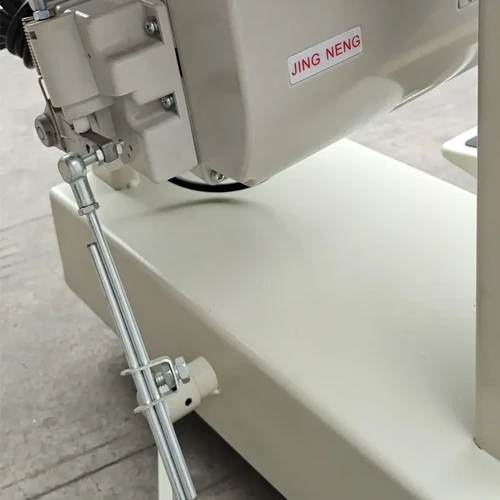

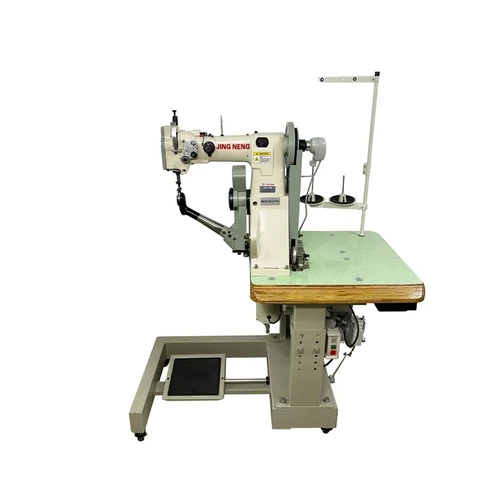

Single Needle Shoe Sole Stitching Machine JN-168 | Side Wall with Swing Arm

1. This machine adopts a compound feeding method, make sewing light and smooth, uniform stitch length and beautiful stitches;

2. Lightweight swing arm structure design, easy to operate and fatigue-free, oil-immersed lubrication system, protective horns are not easy to replace if normal use;

3. Separate transmission structure, Force stop system, when the sewing thread is jammed,  the power supply will be automatically cut off and the operation will stop to protect the

machine from damage;

4. The electronic positioning motor can automatically position and lift the presser foot, and the speed can be adjusted as needed;

5. suitable for sports shoes, casual shoes, sports protective gear and various special sewing.

Specification of Single Needle Shoe Sole Stitching Machine JN-168

Voltage220V
Power1000W
Speed (s.p.m)1500
Lift of the foot presser14MM
Stitch Length0-15MM
Needle Stroke38MM
NeedleCP*5
Automatic presser foot liftingYes
Automatic under trimmingNo
Automatic back trackingNo
Net weight110KG
Dimension110*56*130CM


Products
Get A QUOTE right now

Ask JINGNENG Shoe Making Equipment Expert!

Popular Shoe Sole Stitching Machine

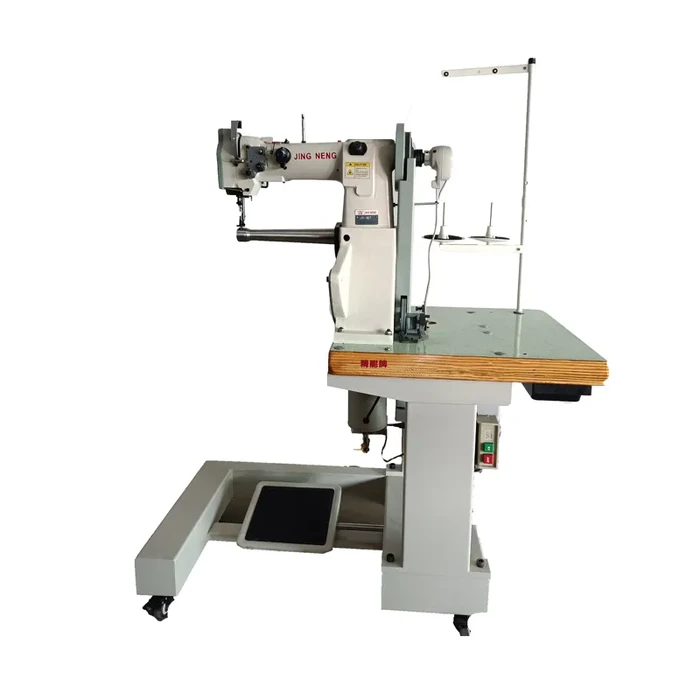

Cylinder Bed Small Mouth Shoe Sole Stitching Machine JN-167 Cylinder Bed Small Mouth Shoe Sole Stitching Machine JN-167

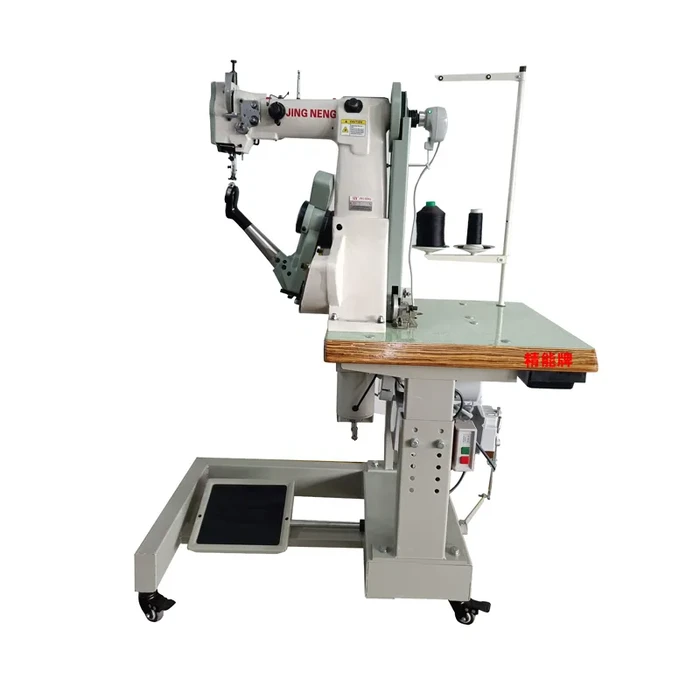

Single Needle Shoe Sole Stitching Machine JN-168H | 15 Degree tilt with Swing Arm Single Needle Shoe Sole Stitching Machine JN-168H | 15 Degree tilt with Swing Arm

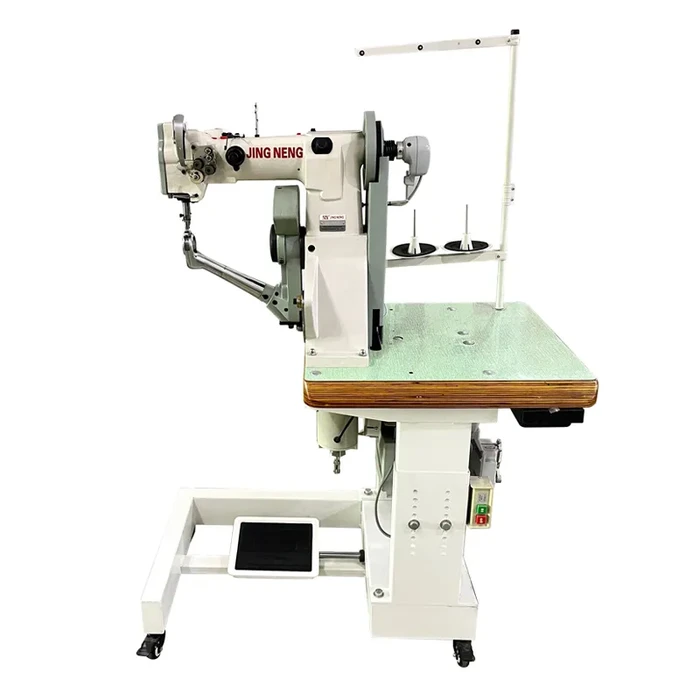

Double Needle Shoe Sole Stitching Machine JN-168Z | Side Wall with Swing Arm Double Needle Shoe Sole Stitching Machine JN-168Z | Side Wall with Swing Arm

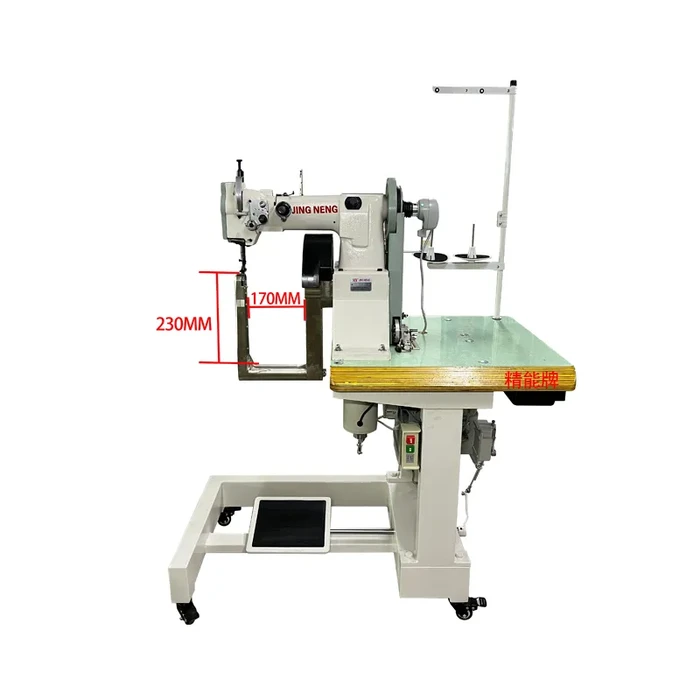

Shoe Sole Stitching Machine JN-168H | 180 Degree U-Shaped Feed with Swing Arm Shoe Sole Stitching Machine JN-168H | 180 Degree U-Shaped Feed with Swing Arm

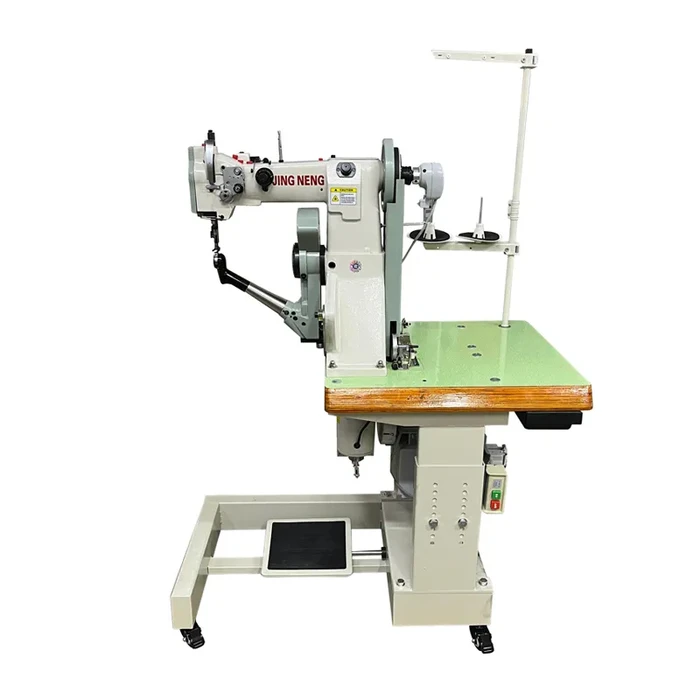

Small Mouth Single Needle Shoe Sole Stitching Machine JN-168SS | Side Wall with Swing Arm Small Mouth Single Needle Shoe Sole Stitching Machine JN-168SS | Side Wall with Swing Arm
