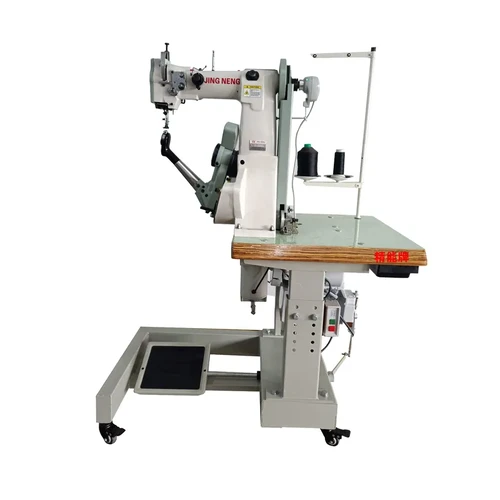

  • JN-168H 15 Degree tilt Single Needle Swing Arm Stitching Machine
  • JN-168H 15 Degree tilt Single Needle Swing Arm Stitching Machine

Single Needle Shoe Sole Stitching Machine JN-168H | 15 Degree tilt with Swing Arm

1. This machine adopts a compound feeding method, make sewing light and smooth, uniform stitch length and beautiful stitches.

2. Lightweight swing arm structure design, easy to operate and fatigue-free, oil immersed lubrication system, protective horns are not easy to replace if normal use;

3. Separate transmission structure, Force stop system, when the sewing thread is jammed, the power supply will be automatically cut off and the operation willstop to protect the machine from damage;

4. The electronic positioning motor can automatically position and lift the presser foot,  and the speed can be adjusted as needed.

5. The horn upturned 15 degress, sutable for sports shoes, casual shoes, sports protective gear and various special sewing.

Specification of Single Needle Shoe Sole Stitching Machine JN-168H

Voltage220V
Power1000W
Speed (s.p.m)1500
Lift of the foot presser14MM
Stitch Length0-15MM
Needle Stroke38MM
NeedleCP*5
Automatic presser foot liftingYes
Automatic under trimmingNo
Automatic back trackingNo
Net weight110KG
Dimension110*56*130CM
